Pulse Induction Search Coil OKM Pulse Nova Frame Coil Xi104
- Additional Search Coil for Pulse Induction (PI) metal detector Pulse Nova
- Measuring depth: Down to 3 m (9.8 ft)
Depth Performance at a glance - Use cases: Militaria detection, Industry
- Detectable objects: Metal objects, ignores unwanted trash such as scrap bottle caps or aluminum foil
plus VAT, shipping and fees
Mon - Fri 10 am - 6 pm Sat - Sun by appointment only
Languages: Türkçe (TR), English (EN)
Metal Detection at Depths of up to 3 m (9.8 ft)

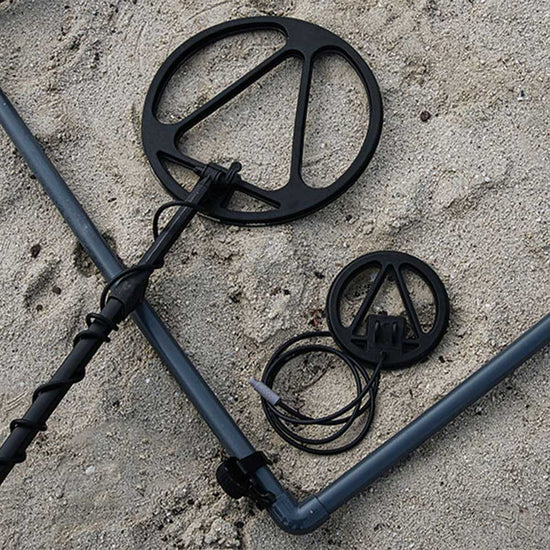

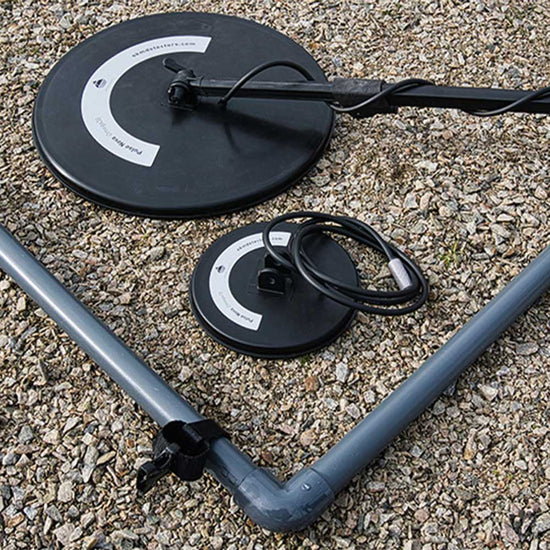

The standard equipment of the Pulse Nova PI metal detector comprises a large and a small dual-wound mono coil. These coils provide good depth performances in the detection of smaller metal objects such as gold and silver jewelry, but also ferrous metals in the underground.
The additional Frame Coil Xi104 provides 1 m² of area coverage and thus scans a correspondingly large magnetic field. In this way, larger objects are detectable and maximum search depths can be achieved. The Frame Coil is used without the Telescopic Rod and can be carried by a single user or by two users.
Mon - Fri 10 am - 6 pm Sat - Sun by appointment only
Languages: Türkçe (TR), English (EN)
Coil tests under optimal conditions (test medium: air, sensitivity: maximum) achieved the following depth performances with the PI metal detector OKM Pulse Nova:
| Search Coils Delta18 and Omega18 | Search Coils Delta38 and Omega38 | Frame Coil Xi104 | |
|---|---|---|---|
| Gold nugget ⌀ 5 mm | 18 cm | 17 cm | - |
| Gold coin ⌀ 20 mm | 23 cm | 25 cm | - |
| Gold ring ⌀ 22 mm | 17 cm | 34 cm | - |
| Silver coin ⌀ 24 mm | 22 cm | 35 cm | - |
| Silver coin ⌀ 40 mm | 31 cm | 45 cm | - |
| 1 EUR coin | 28 cm | 43 cm | - |
| Beverage can 0,5 l | 65 cm | 110 cm | 155 cm |
| Gas can 20 l | 115 cm | 180 cm | 255 cm |
| Steel barrel DIN EN 210 | 115 cm | 180 cm | 310 cm |
Treasure Hunting
Archaeology
Militaria Detection
Agriculture
Forensics
Public Services
Explosive Ordnance Disposal Services
Natural Gold Prospecting
OKM Search Services
| 1x OKM Pulse Nova Frame Coil Xi104 incl. shipping tube |
| 1x Set of carrying straps with belt clips |
| 1x Protector Tube |

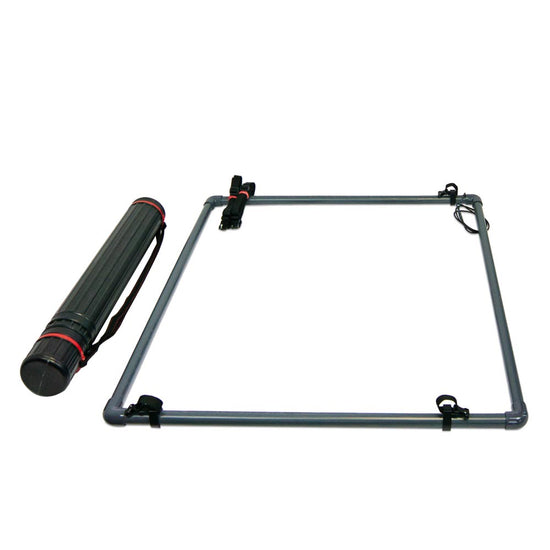

Frame Coil Xi104
- Compatible with OKM Pulse Nova
- Dimensions, disassembled (D x L): Ø 130 x 1120 mm
- Weight (with shipping tube): approx. 3.26 kg
- Dimensions, assembled (L x W x H): 1040 x 1040 x 60 mm
- Weight (without shipping tube): approx. 2.35 kg
- Technology: Mono Coil, High Voltage Pulse Induction
- Waterproof: No
The technical data are average values. Minor deviations are possible during operation.
